4K@60Hz 4:4:4 HDMI Splitter 1 in 2 Out, 2-Port HDMI 1x2 Splitter with EDID Down-scaler for Dual Identical Display Support 1080p@60Hz HDMI2.0 HDCP 2.2 HDR10 Dolby Digital 18Gbps 3D for Xbox, PS5


Price
$23.99
Taxes and shipping calculated at checkout
In stock and ready for shipping
American Express
Apple Pay
Diners Club
Discover
Google Pay
iDEAL
Mastercard
PayPal
Shop Pay
Venmo
Visa
SKU: HD8237FJ

Product information

4K HDMI 2.0 SPLITTER

Our cutting-edge Fosmon 1 in 2 out 4K@60Hz HDMI Splitter effortlessly splits one HDMI input signal onto two synchronized displays. It excels at duplicating and mirroring content, ensuring an immersive viewing and listening experience. But be mindful, this product does not support extended displays. Note: To optimize performance, make sure your HDMI cable length doesn't exceed 10 meters (32.8 feet).

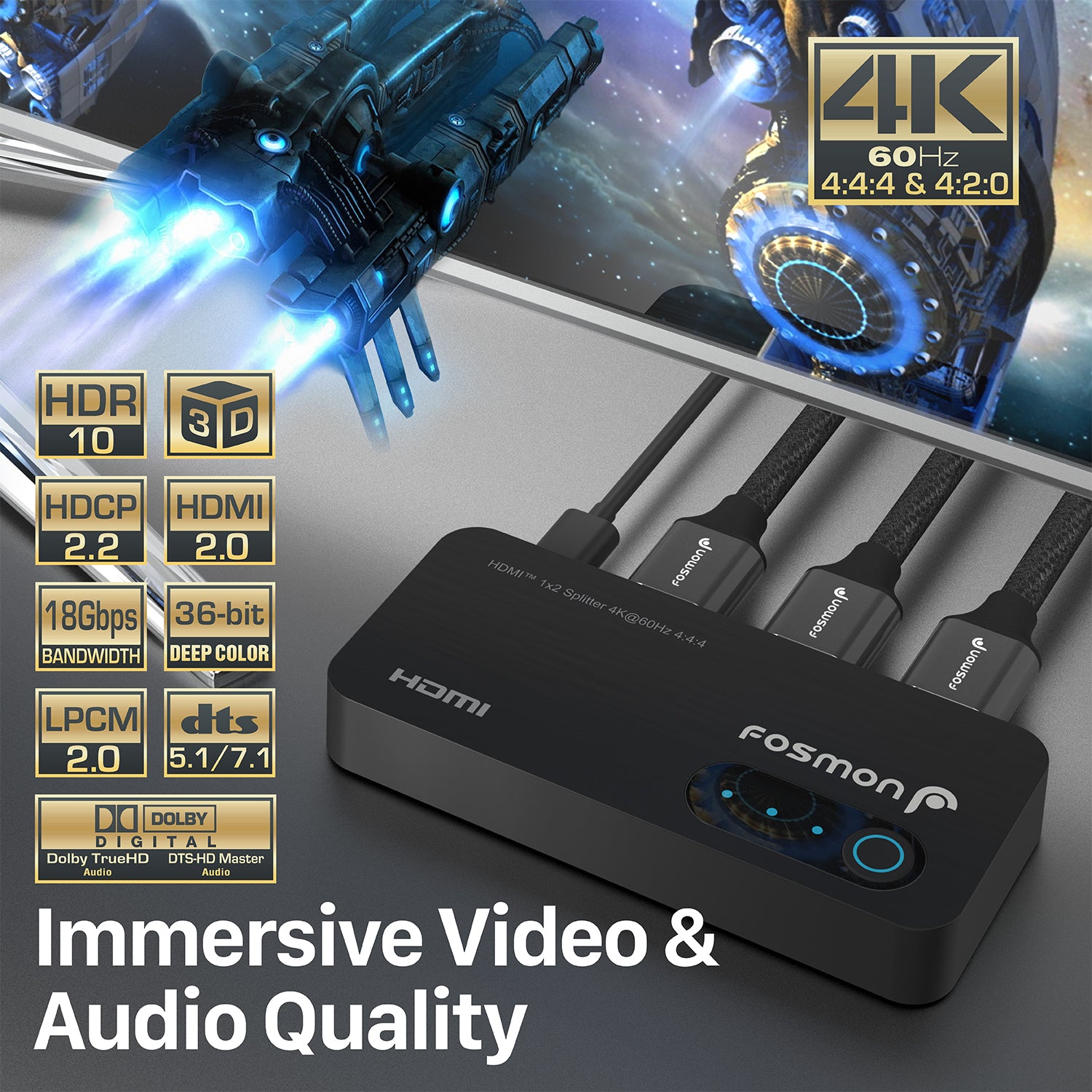

4K@60HZ HDR VIDEO & AUDIO

Supports 4K@60Hz (4:4:4 and 4:2:0), HDMI2.0, HDCP 2.2, HDR 10, 3D, 18Gbps bandwidth, Deep Color, LPCM2.0, 5.1/7.1 DTS, Dolby Digital, DTS-HD Master Audio and Dolby TrueHD audio formats. Transmission distances can support both input and outputs up to 5m at 4K@60Hz and 10m at 4K@30Hz/Full HD 1080p@60Hz.

AUTO DOWNSCALER ON/OFF

Turning on the down-scaler in the scaler mode allows the splitter to support mixed resolutions with two displays with the same refresh rates, but different resolutions. One of the output signals will be downscaling from 4K@60Hz to 1080P@60Hz on a FHD 1080p display and the other at 4K@60Hz to a 4K display. Turning off the down-scaler in copy mode, the splitter will copy the EDID from output 1 to output 2.

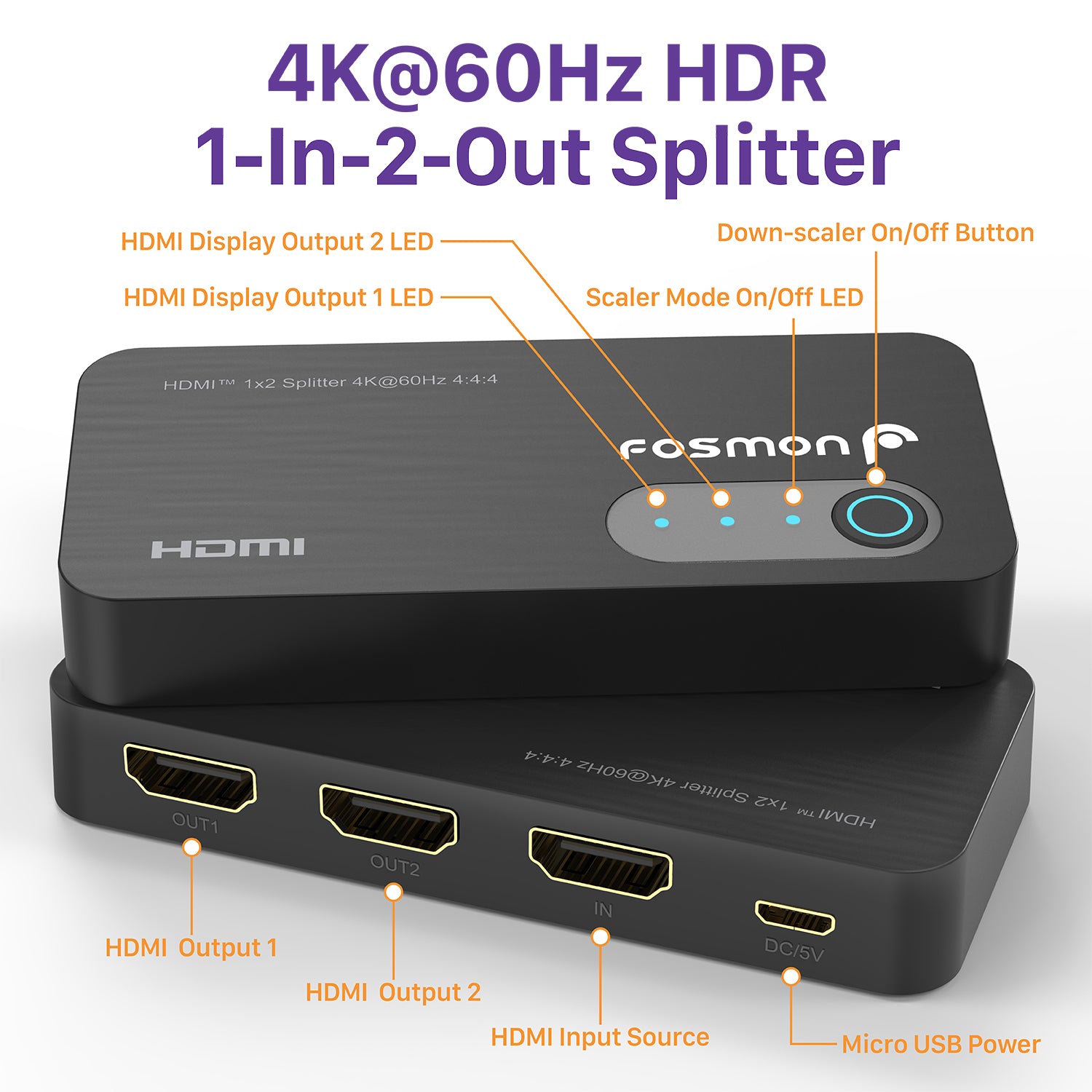

SLEEK & DURABLE DESIGN WITH LED INDICATORS

Portable and compact design with premium housing material guarantees durability, signal stability, heat dissipation and smudge resistance. All HDMI ports are on the same side for easy cable management. Just simply plug and play. The blue LED light indicators show which interface or mode is operating at the moment. Easily switch between on and off for the down-scaler function with a single button press.

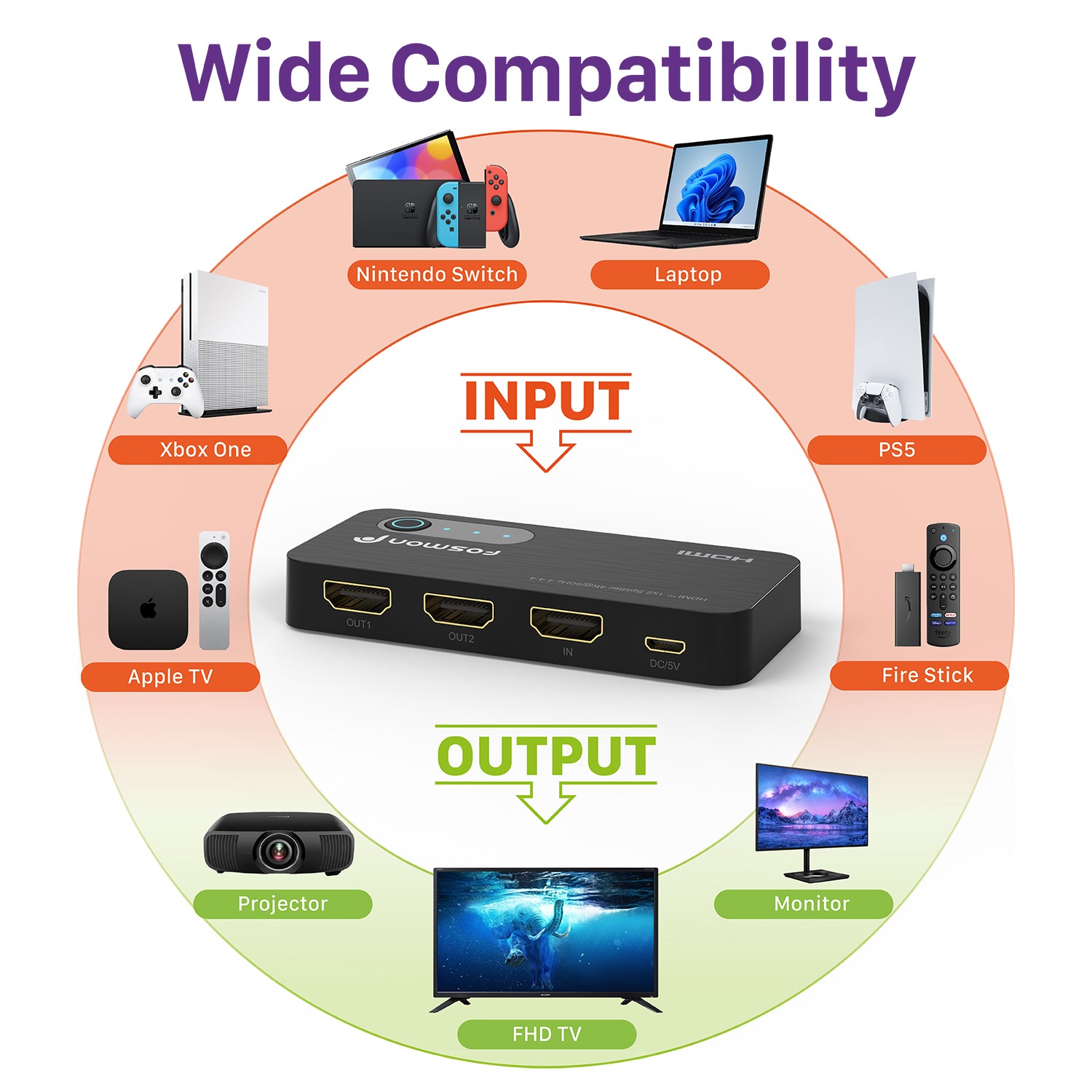

MULTIPLATFORM COMPATABILITY

This 4K@60Hz HDMI splitter works seamlessly with devices featuring HDMI 2.0 ports or lower. Inputs: computers, XBox 360, XBox One, PS5/PS4/PS3, Xbox One Series X/S, Nintendo Switch, Apple TV, Fire Stick, Roku, Blu-Ray player and so on. Outputs: HDTV, FHD TVs, monitors and projectors.

Specifications

  • Input Ports: HDMI x 1
  • Output Ports: HDMI x 2
  • Vertical Frequency Range: 50/60Hz
  • Video Amplifier Bandwidth: 6.0Gbps/600MHz per channel (18Gbps all channels)
  • Interlaced (50&60Hz): 480i, 576i, 1080i
  • Progressive (50&60Hz): 480p, 576p, 720p, 1080p, 4K@24/30Hz, 4K@50/60Hz
  • Operating Temperature: 0? to 70?
  • Storage Humidity: 5% to 90% RH non-condensation
  • Power Supply: Micro-USB Power Cable
  • Power Consumption (Max): 5W
  • Splitter Unit Cert: FCC, CE, RoHS
  • Power Supply Cert: FCC, CE, RoHS
  • Power Adapter Standard: US, EU, UK, AU Standard etc.
  • Dimension (LxWxH): 102x44.8x14.5mm
  • Net Weight: 45g

Package Includes

  • 1x HDMI Splitter
  • 1x Micro-USB Power Cable x1
  • 1x User Manual x1

Features:

  • [4K HDMI 2.0 SPLITTER] Split one HDMI input to two synchronized output displays. Perfect for duplicating content in 4K@60Hz. Note: Does not support extended displays. Cable length under 10m recommended.
  • [4K@60HZ HDR VIDEO & AUDIO] Enjoy 4K@60Hz, HDR 10, 3D, and more. Supports various audio formats. Transmit up to 10m at 4K@30Hz/1080p@60Hz. High-quality visuals and sound.
  • [AUTO DOWN-SCALER ON/OFF] Switch down-scaling on for mixed resolutions on two displays. Downscale 4K to 1080p on one. Turn it off for identical resolutions. Versatile viewing options.
  • [SLEEK & DURABLE DESIGN WITH LEDS] Portable, heat-resistant design with LED indicators. Easy cable management. Blue LEDs show active interface. One-button control for the down-scaler function.
  • [WIDE COMPATIBILITY] Works with HDMI 2.0 devices. Connect computers, gaming consoles, streaming devices to HDTVs, monitors, and projectors. Enjoy seamless 4K visuals.
