4X2 HDMI Matrix 4-Port Switch, 4 In 2 Out Splitter with SPDIF Optical, 3.5mm Audio Output and IR Remote Control, Support 3D, ARC, 4K*2K, Full HD 1080p, Compatible with PS4, PS5, PC, Xbox One

4 In 2 Out HDMI Switch Box

You ever needed more HDMI ports? Fosmon's 4x2 HDMI matrix switch is your cost-efficient solution to adding more HDMI ports to your TV. With four HDMI input ports, it allows you to connect up to four HDMI sources of your choice, and with two HDMI output ports for two HD displays. Switch and distribute your HD sources the way you want, when you want.

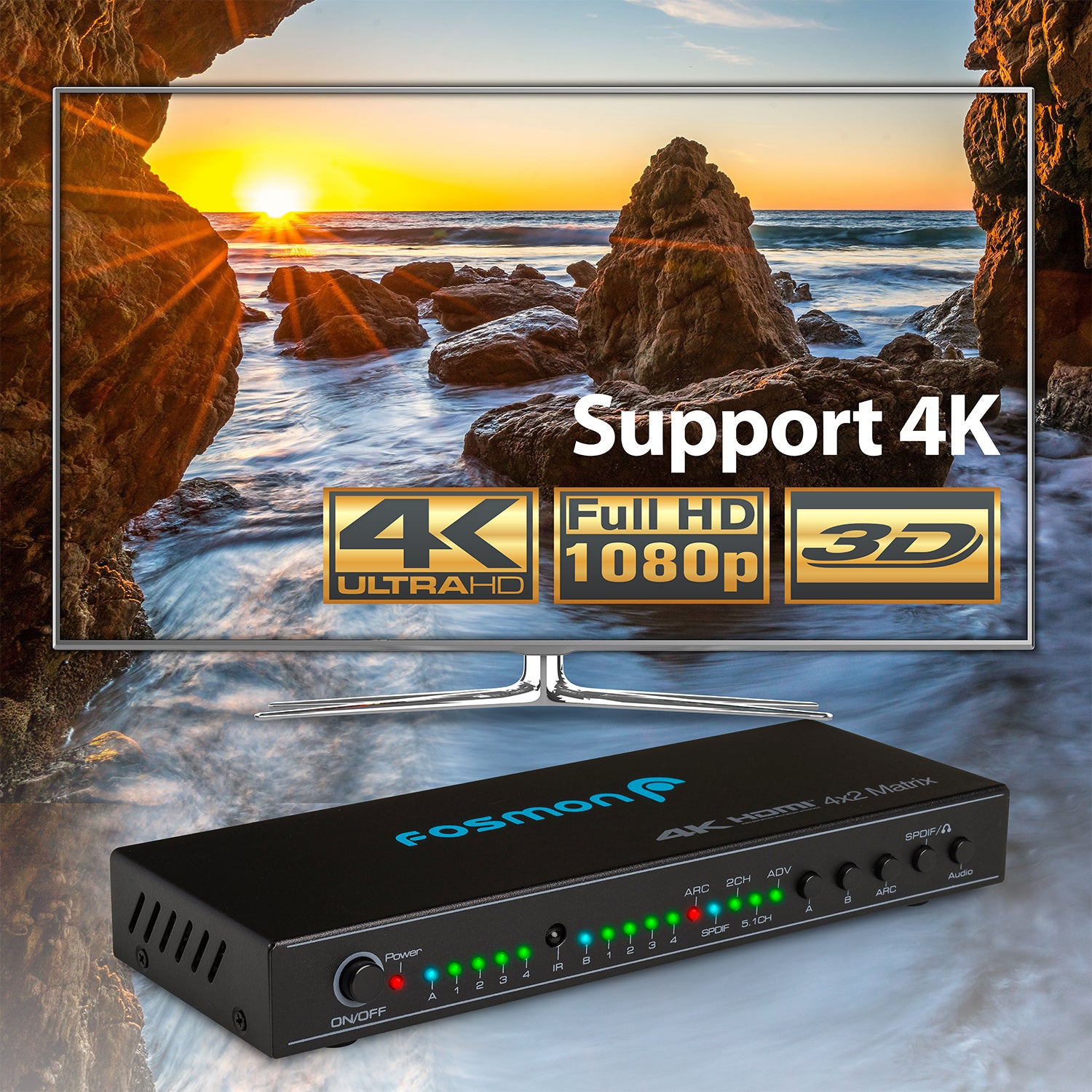

Supports 4K@30Hz and Full HD 1080p

Fosmon's 4x2 matrix supports 4K@30Hz, 1080p@120Hz, ensuring that you get the most crisp picture quality you can get while remaining cost-efficient. Be in control of the quality you want and how you want it to be displayed. Equipped with automated EDID, allowing your video source to match and display perfectly to your monitor's capabilities.

Audio Compatibility and Support

Fosmon's 4x2 matrix is compatible with a wide range of audio options, whether you use the audio output through the SPDIF optical port or the headphone port. It supports digital audio format, DTS-HD, Dolby-TrueHD, LPCM7.1, DTS, Dolby-AC3 and DSD. The matrix has up to three different audio modes: ADV, 2.0CH and 5.1CH. ARC is also supported and works great with soundbars. Our switch also has audio extracting, making it so your sound is sent to a separate audio device (such as a speaker) without effecting your video quality.

High Quality PC Board

The high quality PC board in our 4v2 matrix enhances the stability of the HDMI switch, which helps in minimizing signal loss and screen flicker. The board also offers the ability to use a wireless IR remote control, so you can comfortably swap between inputs without getting out of your comfy seat.

Limited Lifetime Warranty

We have served millions of customers for more than 10 years and every product comes with a limited lifetime warranty. Got a question? Reach out to our experienced and dedicated USA based customer support 24 hours a day, 7 days a week. Please refer to Fosmon’s website for more information.

Specifications

• HDMI STANDARD - 4K x 2K, 4K@30Hz, FULL HD 1080p@120Hz, 3D (1080p@60Hz), HDCP, UHD, HDR 10
• HDMI resolution - 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
• Support video color format - 24bit/deep color 30bit,36bit, 48bit
• Support audio format - DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

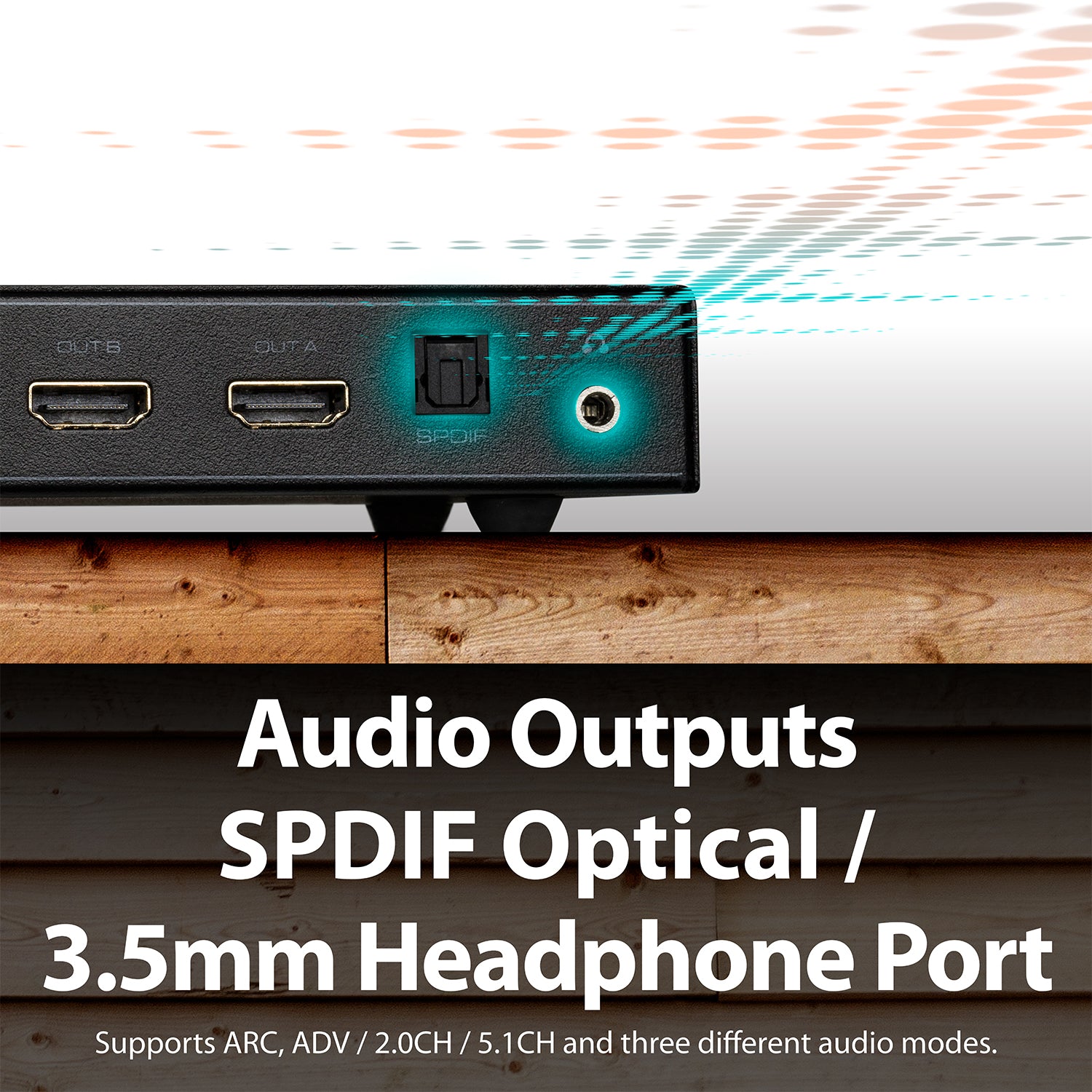

• Audio output - SPDIF and 3.5mm Stereo
• Max transmission bandwidth - 340MHz
• Max baud rate - 10.2Gbps
• Input/Output TMDS signal - 0.5~1.5Volts p-p
• Input/Output DDC signal - 5Volts p-p (TTL)
• Input cable distance - ≤15m AWG24 HDMI standard cable
• Output cable distance - ≤25m AWG24 HDMI standard cable
• Max working current - 1300mA
• Power adapter format - Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/2A
• Operating Temperature range - (-15 to +55?)
• Operating Humidity range - 5 to 90%RH (No Condensation)
• Dimension (L x W x H) - 250 x 27 x 75 (mm)
• Weight - 380g

Package Includes

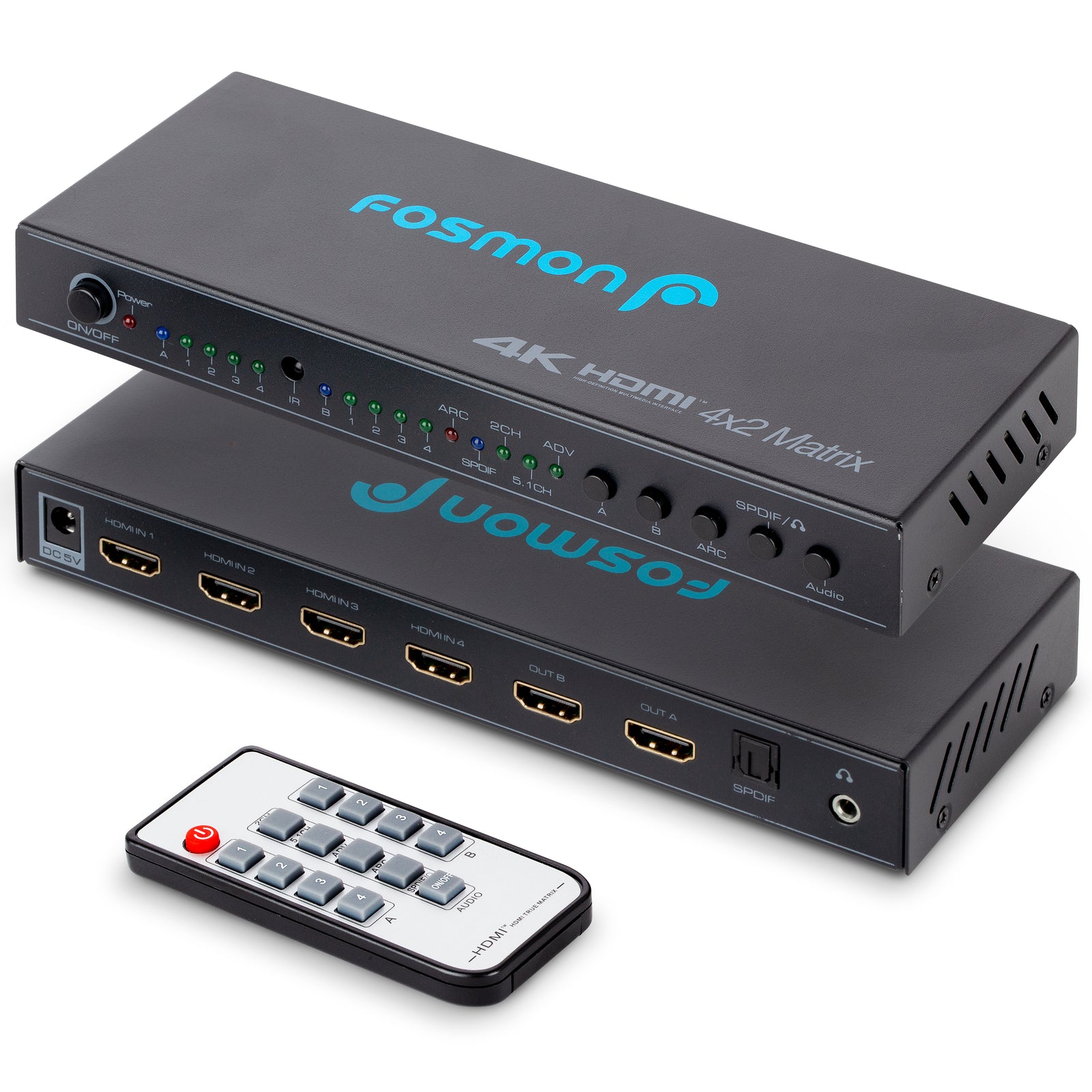

• 1x Fosmon 4x2 HDMI matrix switch
• 1x 5V Power adapter
• 1x IR remote
• 1x User manual

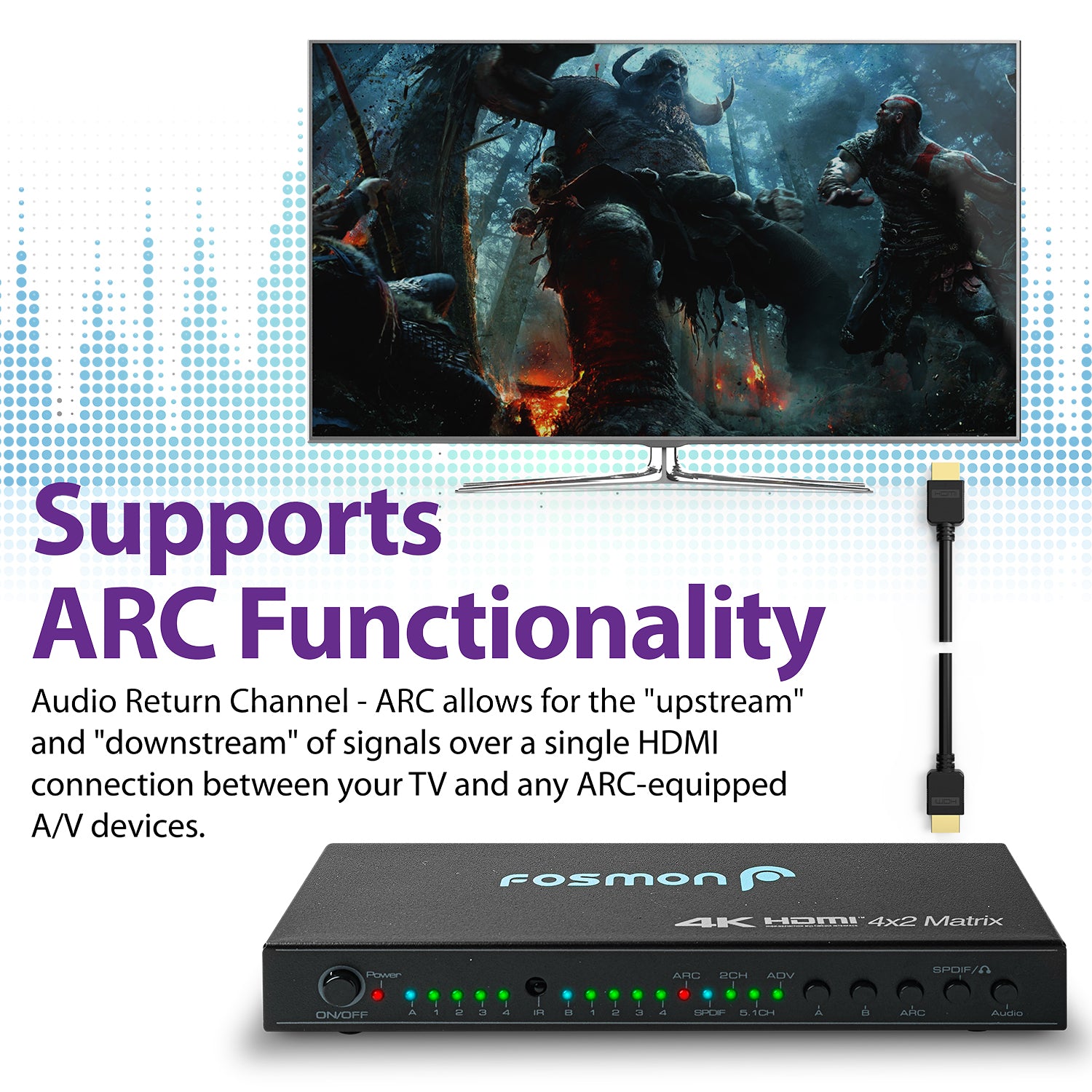

Note: ARC only works on output A. Audio must send a 5.1 signal for the 5.1 audio setting to properly work.


Features:

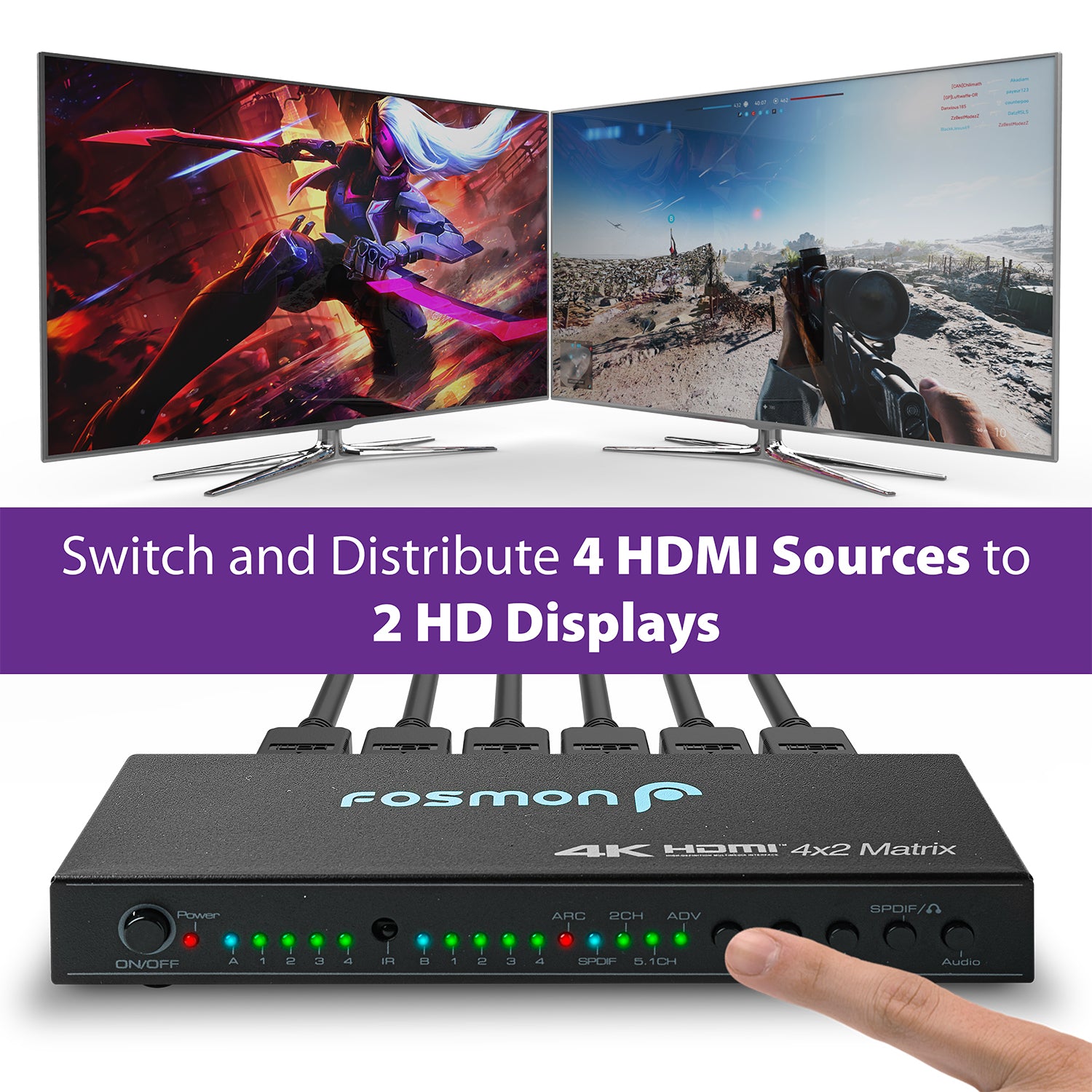

• [4 IN 2 OUT HDMI SWITCH BOX] Increase the ports on your TV in a cost-efficient manner. Connect up to four different input devices and have them displayed on two different HD displays at your leisure. Swap from input to input and from display to display. Be in control of your entertainment.
• [SUPPORTS 4K@30HZ AND FULL HD 1080P] Our 4x2 matrix supports 4K@30Hz and 1080p@120Hz which ensures that you get the best quality you can get while not breaking the bank. Enjoy high video quality the way entertainment is supposed to be enjoyed. Equipped with automatic EDID.
• [AUDIO COMPATIBILITY] Supports numerous audio formats, such as: digital audio format, DTS-HD, Dolby-TrueHD, LPCM7.1, DTS, Dolby-AC3 and DSD. ARC is also supported. Feel assured that your audio will be supported and properly working. Equipped with automatic EDID.

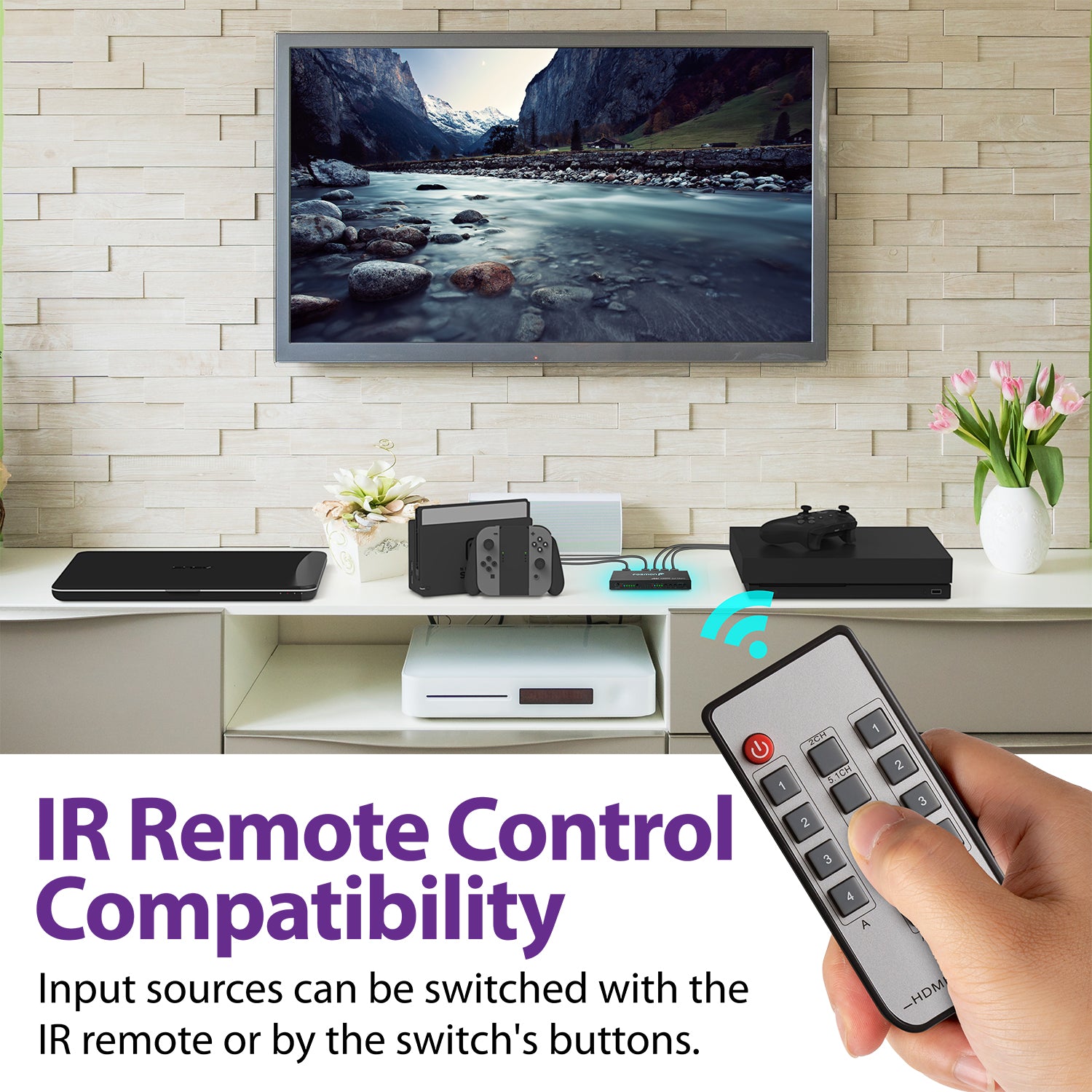

• [HIGH QUALITY PC BOARD] Built with a high quality PC board, our 4x2 matrix minimizes screen flickering and signal loss. The board also supports IR, which allows you to use an IR remote to control the 4x2 matrix from the comfort of your seat.
• [LIMITED LIFETIME WARRANTY] This product comes with a limited lifetime warranty. Please refer to Fosmon’s website for more information.
