HDMI Extender Over Ethernet Over Single Cat5/6/7 Cable up to 164-230ft / 50-70m, HDMI Extender Splitter with Auto EQ & POC, HDMI to Ethernet Extender Supports 1080P@60Hz with IR Remote Control

HDMI Over Ethernet Extender

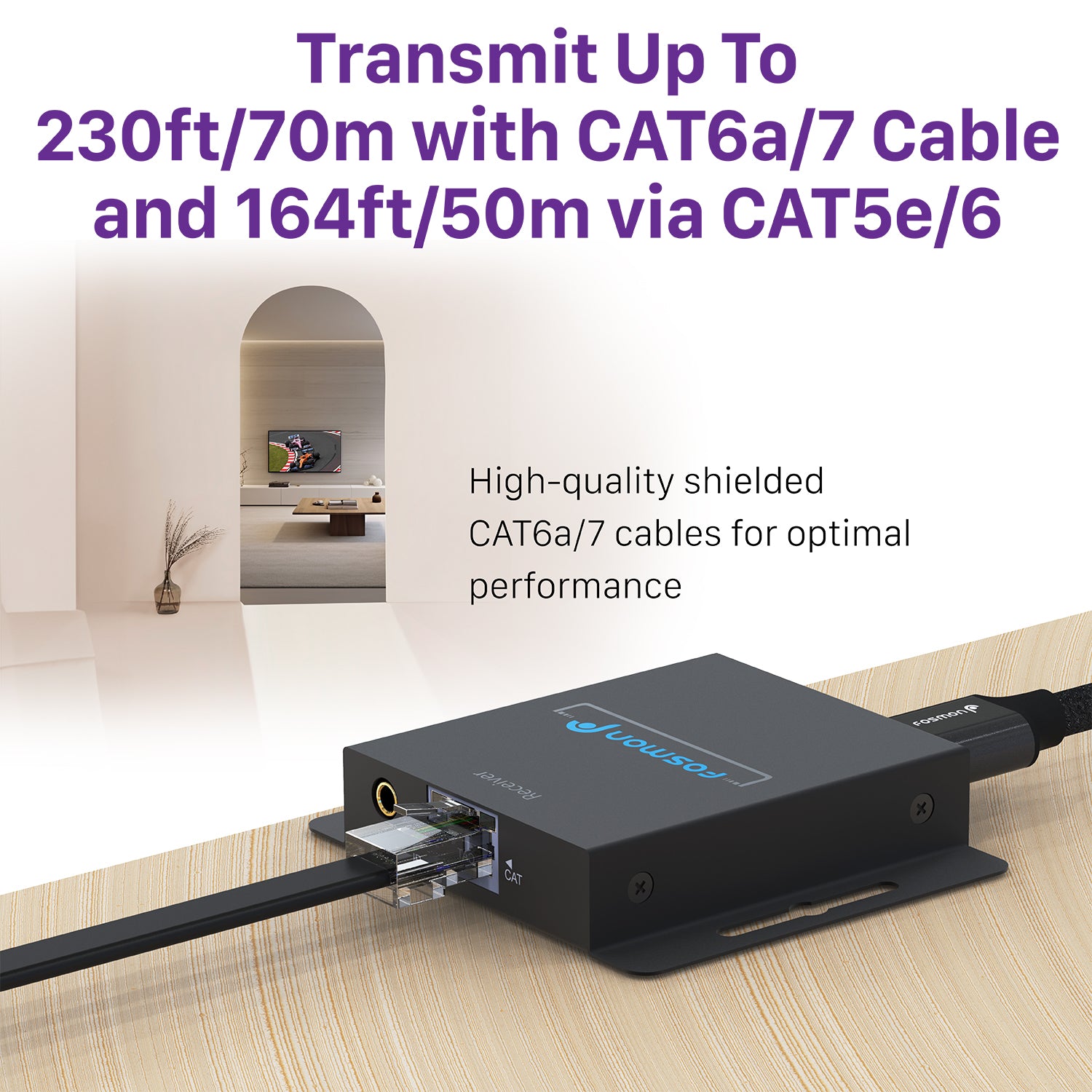

Transmit 1080P at 60Hz signals effortlessly up to 164ft/50m via CAT5e/CAT6 cables or extend up to 230ft/70m using a CAT6a/CAT7 cable, ensuring seamless audio-video synchronization without delays. Optimal performance is achieved with high-quality shielded CAT6/7 cables for superior picture and signal quality. Ideal for home or office use. Supporting various devices such as PC, laptops, game consoles, Blu-ray Players/media players, HD TV box, Apple TV and more.

Power Over Cable

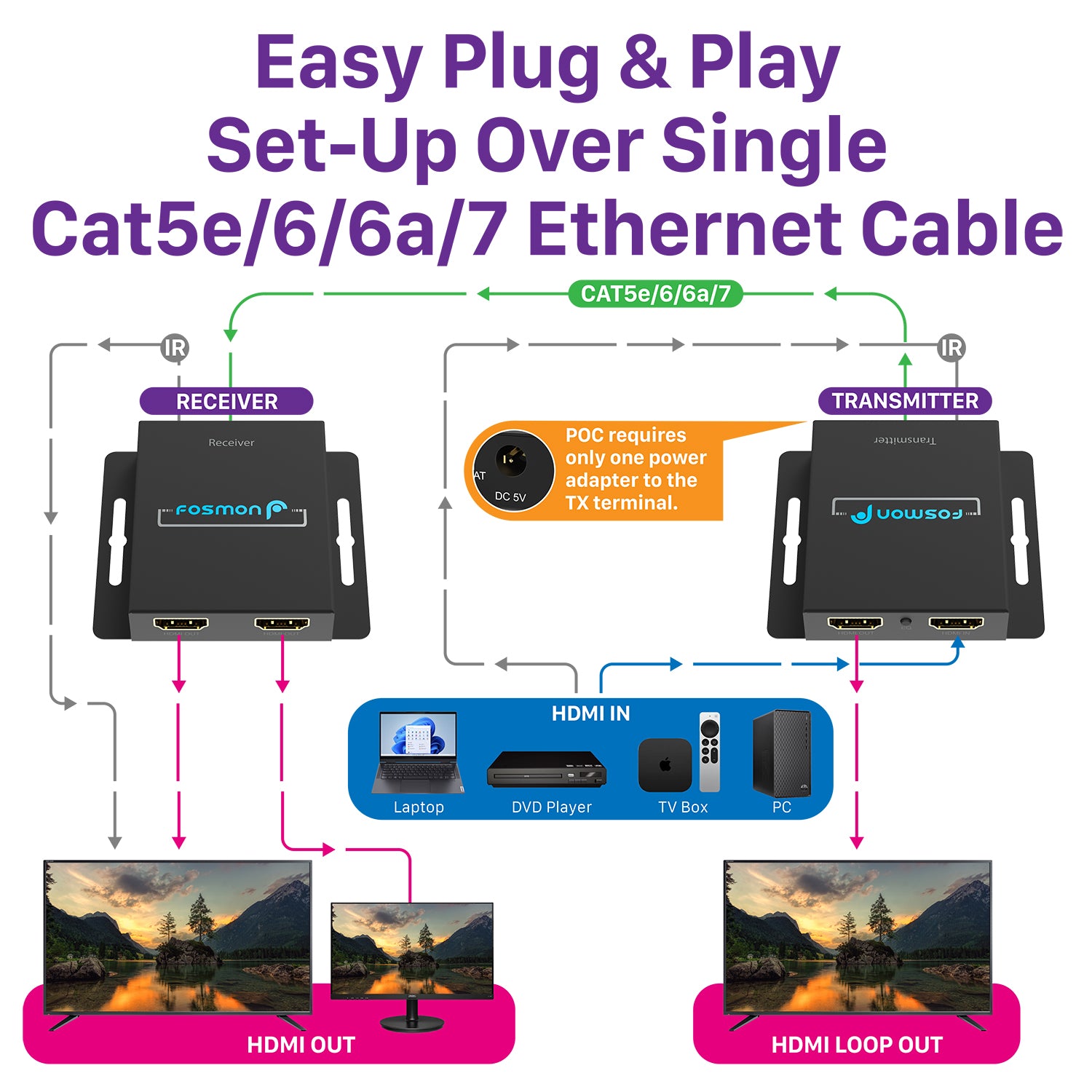

Utilizing Power Over Cable (POC) technology, this extender streamlines operation by requiring only one power adapter connected to the TX terminal to support the entire device. No drivers are necessary, making it a hassle-free plug-and-play experience. The HDMI transmitter demands only one power adapter for Ethernet, eliminating the need for an adapter on the receiver end. The EQ button also automatically adjusts network cable length matching settings for added convenience.

Local Loop Out

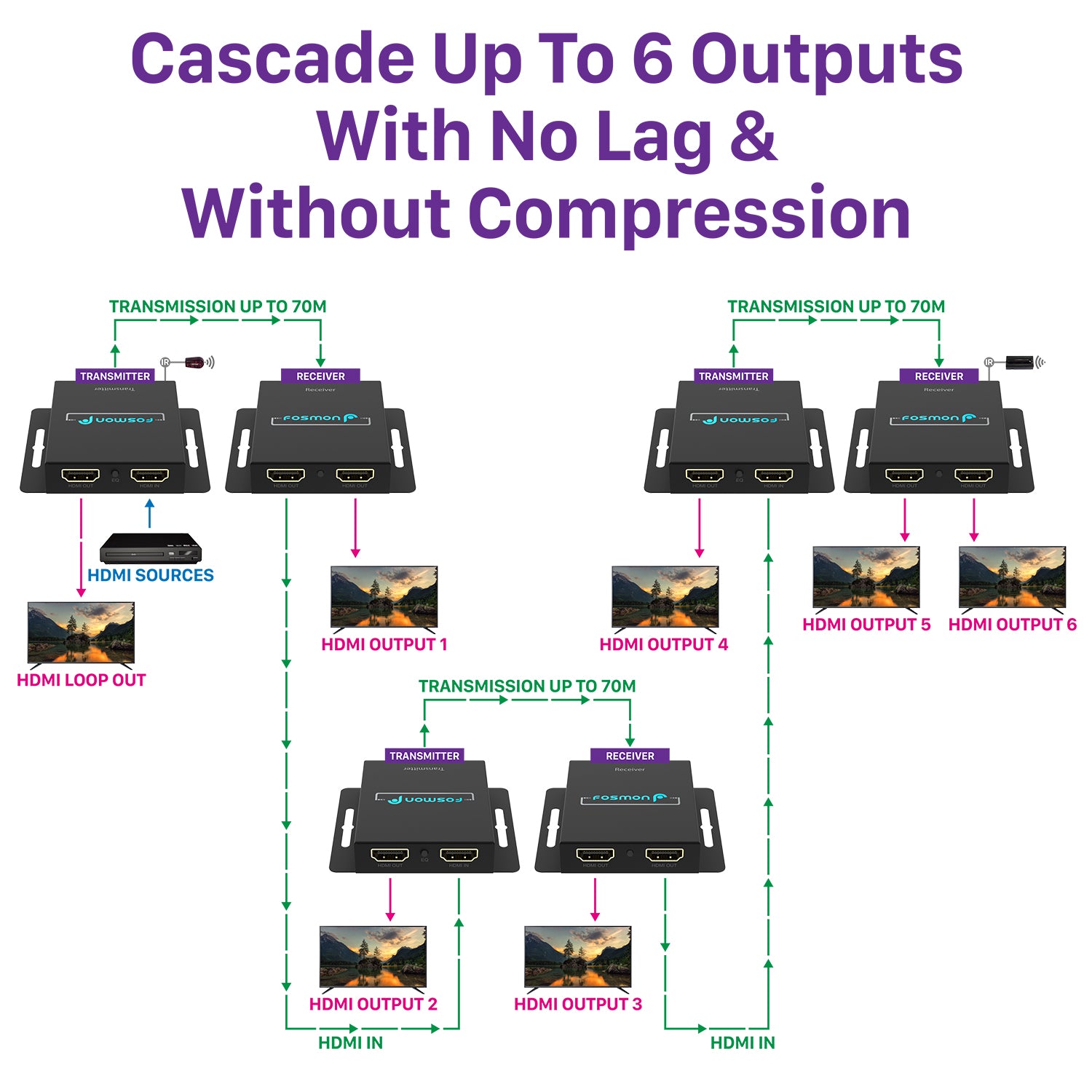

Enhance flexibility by adding an extra HDMI out port on the HDMI receiver for a 1 in 2 out configuration, effectively combining the functionality of an HDMI extender and HDMI splitter. Moreover, the HDMI transmitter features an HDMI loop-out functionality, facilitating simpler 1 in 3 out setups. Versatile applications include home, office, gyms, bars, restaurants, classrooms, and meeting room projectors. Cascade up to 6 outputs with no lag and without compression.

Zero-Loss Transmission

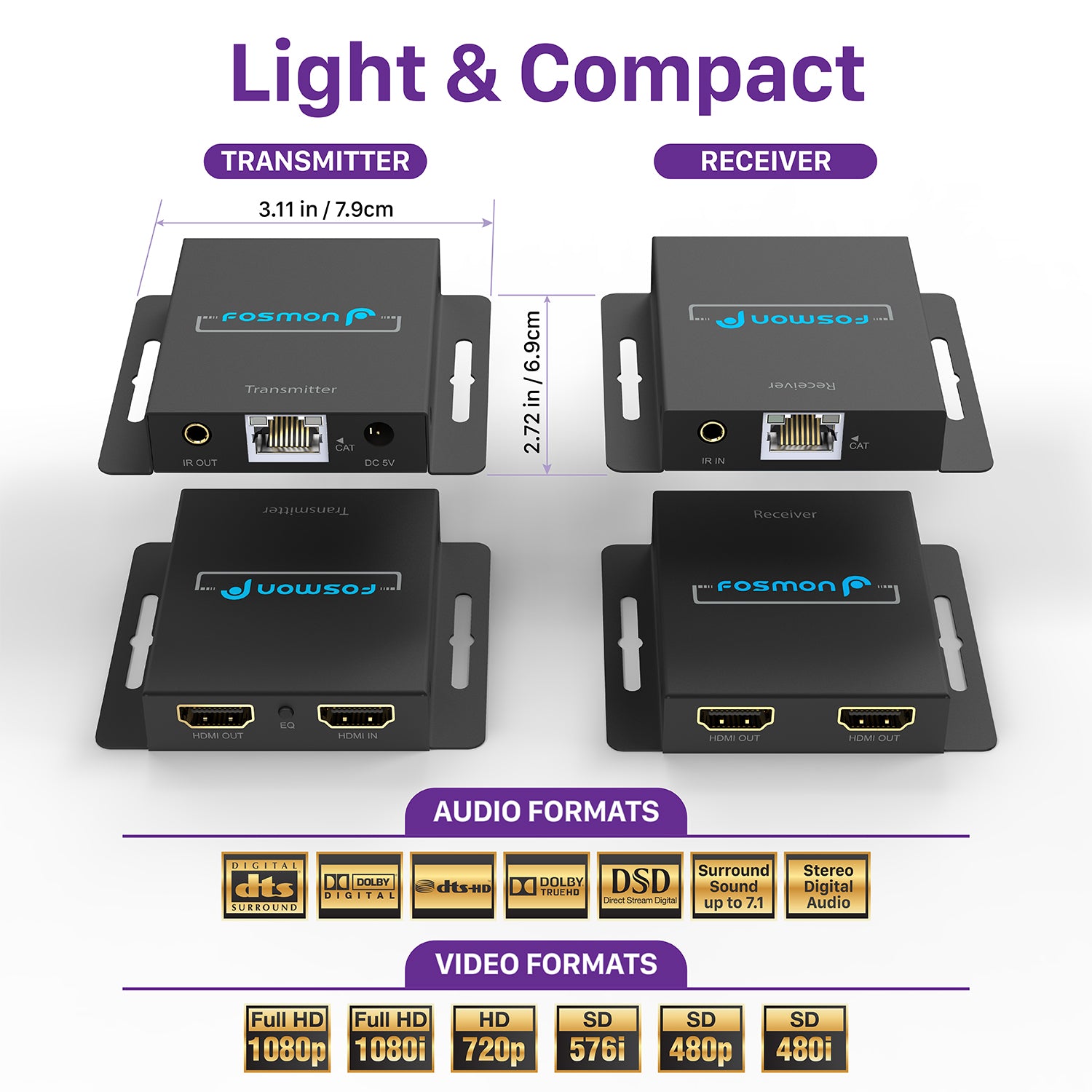

Experience pristine visuals with Fosmon’s HDMI extender, supporting 1080P@60Hz and 3D without any compromise in image quality or signal integrity over CAT5e/6/7 cables. Enjoy immersive audio with support for DTS-HD, Dolby TrueHD, DTS, Dolby-AC3, DSD, Surround Sound up to 7.1, or Stereo Digital Audio. Compatible with various video formats like 1080p, 1080i, 720p, 576i, 480p, and 480i. Ideal for diverse applications such as education, LED display screens, projects, video conferences, multimedia home theater setups and so on.

IR Remote Control Enable

Simplify device control effortlessly with the IR transmitter linked to the HDMI transmitter and the IR receiver connected to the HDMI receiver. This enables infrared remote control from the HDMI receiver to the equipment on the HDMI transmitter, ensuring a user-friendly operation that saves time and effort.

Specifications

• HDMI Version: HDMI 1.3
•  HDCP Version: HDCP 1.2
• PSU: 5V1A DC
• Video Bandwidth: Single-link 165 Mhz [4.95Gbps]
• Video Support: 480i/480p/720p/1080/1080p@60
• Audio Support: Surround Sound (up to 7.1 ch) or stereo digital audio
• Transmission Range: HD [1080p 24-bitcolor]-up to 50m [164ft]
•  Input TMDS Signal: 3.3 volts
•  Input DDC Signal: 5.0 volts/P-P
• 3.5mm connector: (transmitter and receiver) IR Receiver/IR Blaster
•  Housing: Aluminum Enclosure
• Power consumption: 1.5 watts (transmitter): 1.0 watts (receiver)

Package Includes

• 1x HDMI Transmitter
• 1x HDMI Receiver
• 1x Power Supply Adaptor
• 1x IR Blaster Cable
• 1x IR Receiver Cable
• 1x User Manual

Features:

• [EFFORTLESS HDMI EXTENSION OVER ETHERNET] Transmit 1080P@60Hz signals up to 164ft/50m (CAT5e/CAT6) or 230ft/70m (CAT6a/CAT7). Superior audio-video sync, ideal for home or office use with devices like PC, laptops, game consoles, Blu-ray players, and more.
• [POWER OVER CABLE] Streamline setup with Power over Cable (POC) tech. One power adapter at TX terminal supports the entire device. No drivers needed, plug-and-play convenience. EQ button auto-adjusts cable length settings.
• [ENHANCED FLEXIBILITY - LOCAL LOOP OUT] Add HDMI out on receiver for 1 in 2 out config, combining extender and splitter functions. Transmitter features HDMI loop-out for 1 in 3 out setups. Versatile applications for home, office, gyms, bars, classrooms and meeting rooms.
• [ZERO-LOSS TRANSMISSION FOR PRISTINE VISUALS] Fosmon HDMI extender delivers 1080P@60Hz, 3D support with zero compromise on image quality over CAT5e/6/7 cables. Experience immersive audio with support for DTS-HD, Dolby TrueHD, and more. Ideal for education, LED displays, video conferences, and home theaters.
• [IR REMOTE CONTROL – EFFORTLESS CONTROL] Simplify device control with the IR transmitter linked to HDMI transmitter and IR receiver connected to HDMI receiver. Enable infrared remote control for user-friendly operation, saving time and effort.
• [LIMITED LIFETIME WARRANTY] This product comes with a limited lifetime warranty. Please refer to Fosmon’s website for more information.
